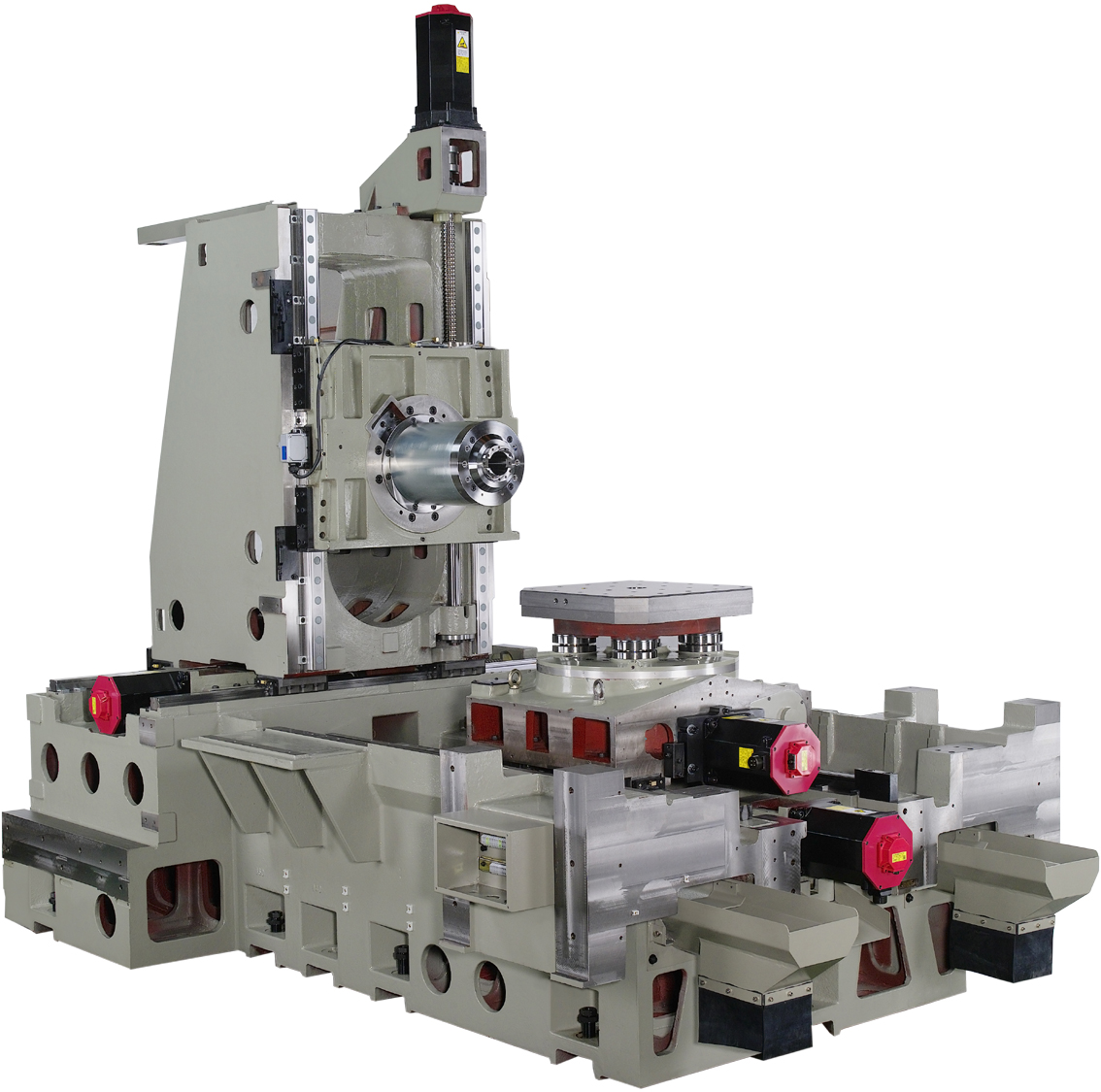

Vcenter H500HS

Victor’s Vcenter-H500 was designed with a mixture of the highest of  quality and rock solid reliability. Following the success of the Vcenter-H630, where the emphasis was on a continuous cutting ability, the Vcenter-H500 was designed to ensure downtime was kept to a absolute minimum from the casting of the machine structure to the final machine assembly. The machine’s all round strength and rigidity coupled with high speed features makes this ideal for machine shops looking for high productivity.

  • Durable tool changer ATC
  • Built-in spindle
  • Spindle speed 15000 rpm,18.5/22kW (25/29.5HP)
  • High speed pallet changer APC
  • Symmetrical design for minimal heat growth and chip build-up
  • Over-sized linear guideways


Description

Specifications
X-axis travel mm 720
Y-axis travel mm 650
Z-axis travel mm 720
Table working area mm 500 x 500
Rapid feed X/Y/Z m/mm 30/30/24
Tooling BT-40
Number of tools 40
Spindle Speed rpm 14000
Spindle Power kw 15/18.5
Machine Weight tons 11000
