Vturn 40 / 325

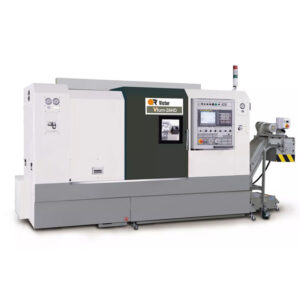

Victor Vturn 40 / 325 Horizontal Turning Lathe

  • Heavy cutting lathe with spindle nose A2-11 for turning length from 1250mm to 4250mm.
  • Bar capacity 91mm, Spindle speed 2500rpm.
  • Single piece cast slant bed (45-degree) for minimum distance from ball screw to the tool tip
  • Spindle bore A2-11 with hydraulic chuck 15” (opt. 12”)
  • Genuine 45∘one piece slant bed for maximal structure rigidity
  • Large ballscrew diameter in Z-axis: 50mm Vturn-40/125 & Vturn-40/220, 63mm for Vturn-40/325, 70mm for Vturn-40/425
  • Y-axis & C-axis applications available with built-in spindle for contour milling.


Description

Specifications
MACHINE CAPACITY
Swing over bed mm 780
Std. Turning dia. mm 520
Max. turning dia. mm 620 [560/580] (390 for CV)
Swing over carriage mm 620
Center distance mm 3425
Hole through draw bar mm 91 (opt. 105 for CV/(Y)CM)
AXIS FEEDS
X axis travel: – Std turret mm 310+30
X axis travel: – VDI turret mm 125+315
X axis travel: – VDI turret, C-axis mm 107+165
X axis travel: – BMT turret, C-axis mm 280+90 / 290+50
Z axis travel mm 3250
Y axis travel mm ±80
Rapid feed – X/Z axis m/min 20/12
Rapid feed – Y axis m/min 7
Feed motor – X/Z axis kW 4 / 6 (@40_38Nm) [7 / 6 (@40i)]
Feed motor – Y axis kW 4
JOG feed rate mm/min 0~1260
Ball screw dia x pitch mm 63 x P16 (Z)
SPINDLE
Spindle nose (chuck) inch A2-11 (15″)
Max. spindle speed rpm 2500
Spindle motor power kW 30/37 with gearbox (37/45 CV/YCM/CM)
Bearing inside dia. mm 160
Spindle bore mm 105
TURRET
No. of tools no. 10 (opt. 12) (12 for CV/YCM/CM)
No. of live tools no. 6 (CV), 12 (YCM/CM)
Tool shank size mm 32
Curvic coupling dia. (mm) mm 320 (250) [320/320]
Max. boring bar dia. mm 50 (VDI-50) [BMT-75]
Exchange time (T-T) sec 1
Milling speed rpm 3000
Milling motor kW 7.0
TAILSTOCK
Quill dia. mm 150
Quill stroke mm 150
Quill taper MT#5 (live)
OTHER
CNC controller (FANUC) 0i-T
Tank capacity L. 850
Approx. machine size m 8.5 x 2.7 x 2.2 [2.9]
Net weight kg 17000 [19000/17600]
