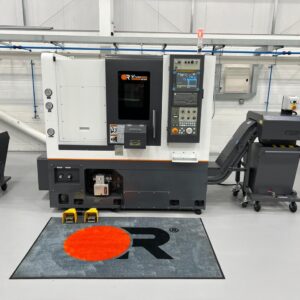

Victor Vturn 26/60 HD with Fanuc 0i-TF Control

Machine at our warehouse in Oldham, Greater Manchester.

Cost-effective model for reliable heavy cutting!

  • Genuine 45° slant bed for minimum distance from Z-axis ball screw to the tool tip
  • Box slideways with hardness HRC 55 for heavy cutting
  • Programmable tailstock and chip conveyor is offered as standard
  • Fanuc-0i-TF to offer high cutting force at low rpm
  • Z-axis ball screw diameter 40mm for heavy cutting and high reliability
  • Maximum turning length 610mm

Category:

Description

Specifications

Machine Control
ControlFanuc Fanuc 0i-TF
Screen10.4 Inch Colour Display
Capacity
Swing Over Bed520mm
Standard Turn Dia.290mm
Max Turn Dia410mm
Swing Over Carriage380mm
Bar Capacity75mm
Spindle
Spindle NoseA2-8
Max Spindle Speed3500rpm
Turret
No. of Tools10
Tailstock
Quill Dia110mm
Other
Parts CatcherHead-mounted type, below chuck, hydraulic
Standard Tooling AccessoriesVT26HD Standard Tooling Accessories
Manual Tool PresetterRenishaw
Oil SkimmerYes
High Pressure CoolantGrundfos SPK4-8
Machine Net Weight5400kg
Aprox. Machine Dimensions380 x 200 x 200cm
Delivery
LocationMachine at our warehouse in Oldham
