Description
|
Specifications |
||
| X-axis travel | mm | 210+30 |
| Z-axis travel | mm | 1100 |
| Rapid feed – X / Z axis | m/mm | 18 / 24 |
| Spindle Speed | rpm | 3500 |
| Spindle Power | kw | 15 / 18.5 / 22 |
| Machine Weight | kg | 6830 |

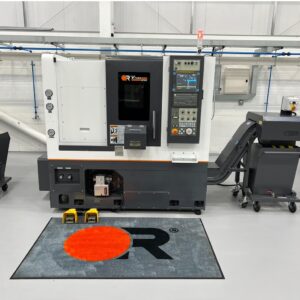

Victor Vturn-S26/110CM
- Fanuc 0i-TF Plus control
- Tailstock MT#4 (live)
- Air conditioner for electrical cabinet
- BMT-65 Turret, Belt Driven, Max Milling 6000rpm
- High-pressure coolant (Grundfos SPK4-8)
- M.T.P. (Manual tool presetter) – Renishaw
- Parts catcher (head-mounted type, below chuck, hydraulic)
- Oil skimmer
- Bar feeder interface
- AICC (40 blocks)
- Manual Steady Rest
- 1 Year parts & labour warranty
- 1 Year servicing
