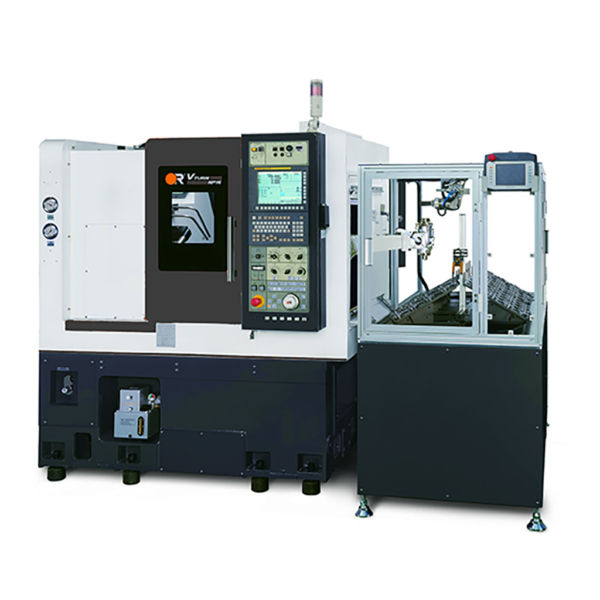

Victor Vturn-NP20CM

Stock ID 10028
In Stock

  • Fanuc 0i-TF Plus control
  • C-axis BMT turret, max milling 6000rpm
  • AICC (40 blocks)
  • 8″ Autostrong chuck
  • Manual tailstock with programmable quill (MT4)
  • Parts catcher
  • Right-hand disposal chip conveyor & cart
  • Renishaw manual tool presetter
  • 1 Year parts & labour warranty
  • 1 Year servicing

Category:

Description

Specifications

Machine Control
Control Fanuc Fanuc 0i-TF
Screen 10.4 Inch Colour Display
Capacity
Swing Over Bed 650mm
Standard Turn Dia. 230mm
Max Turn Dia 260mm
Swing Over Carriage 365mm
Bar Capacity 52mm
Spindle
Spindle Nose A2-6 (8”)
Max Spindle Speed 4200rpm
Turret (BMT-55)
No. of Tools (live) 12
Milling Speed 4,000rpm
Milling Motor 2.2kw
Tailstock
Quill Dia 75mm
Other
Parts Catcher Head-mounted type, below chuck, hydraulic
Standard Tooling Accessories BMT-55
Chip Conveyor Right Hand Side Disposal
Manual Tool Presetter Renishaw
Oil Skimmer Yes
High Pressure Coolant Grundfos SPK4-8
Machine Net Weight 4000kg ( 4370kg incl Standard Accessories)
Aprox. Machine Dimensions 1930 x 2257 x 1890mm
Delivery
Location Machine at our warehouse in Oldham
