Description
|
Specifications |
||
| X-axis travel | mm | 190.5+69.55 |
| Z-axis travel | mm | 850 |
| Y-axis travel | mm | ±55 |
| Spindle Speed | rpm | 3500 |
| Spindle Power | kw | 15/22 |
| Turret | – | BMT-65 |
| Milling speed | rpm | 4000 |
| Machine Weight | kg | 9100 |

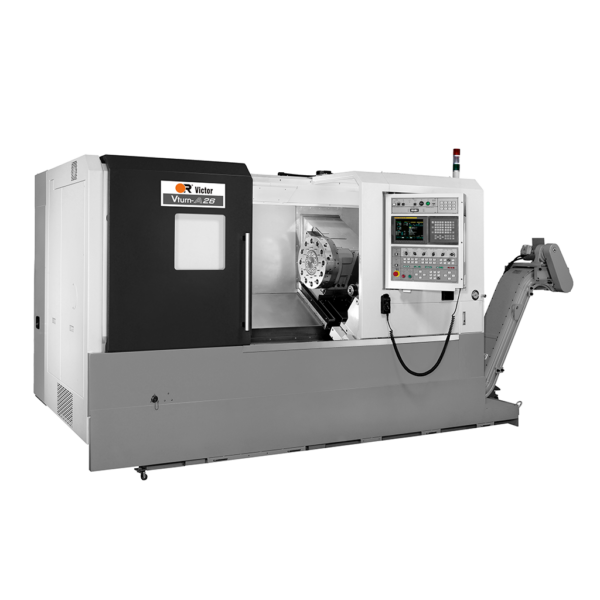

Victor Vturn-A26/85
- Fanuc 0i-TF Plus
- YCM 12 Station BMT-65 turret, 4000rpm
- AICC-2
- 10″ Kitagawa chuck hydraulic chuck
- Parts catcher
- Chip conveyor & cart
- Programmable tailstock MT4
- Renishaw manual tool presetter
- Bar feed interface
- 1 Year parts & labour warranty
- 1 Year servicing
