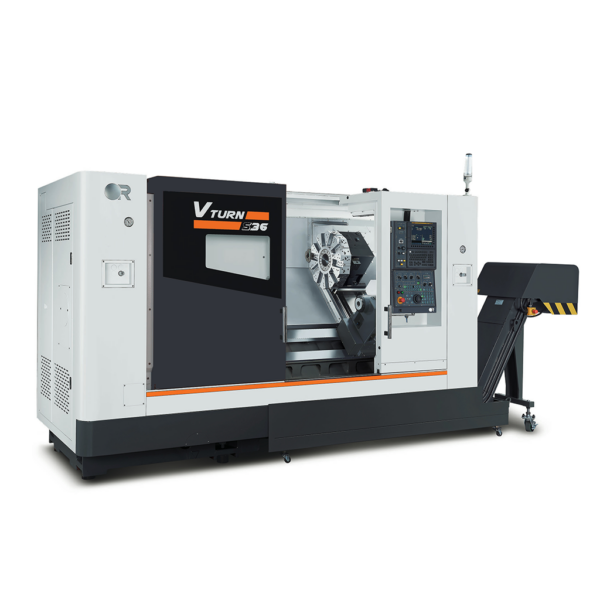

Victor Vturn-S36CM

Included Option Highlights

  • Fanuc 0i-TF Plus control
  • Cs-axis BMT-75 turret
  • AICC (40 blocks)
  • 12″ Kitagawa chuck
  • Programmable tailstock (MT5)
  • Bar feeder interface
  • Manual steady rest 30-300mm
  • Chip conveyor & cart
  • Renishaw manual tool presetter
  • 24 Months parts & labour warranty
  • 2 Years servicing

Category:

Description

Control Fanuc 0i-TF Plus control
10.4” screen
QWERTY keyboard
Manual Guide i (MGI).
AICC (40 blocks)
2G CF card
Turret Cs-axis BMT-75 turret
Spindle 2500rpm Hydraulic 12″ Kitagawa chuck with belt-driven spindle + GTP gearbox, 30/37 KW, 91mm
Tailstock Programmable tailstock (MT5)
Steadyrest Manual steady rest 30-300mm
Coolant options High-pressure coolant
Oil Skimmer
Coolant flush on Z-axis cover
Chip removal Chip conveyor & cart
Measuring Renishaw tool presetter
Interface Bar feeder interface
Accessories 3 Sets of soft jaws
1 Set of hard jaws
Warranty 24 Months parts & labour
Annual Service 2 Years

Specification

Machine Capacity Swing over bed mm ø780
Std. Turning dia. mm ø452
Max. turning dia mm ø580
Swing over carriage mm ø600
Center distance mm 898
Bar capacity (hole through draw bar mm ø91
Axis Feeds X axis travel mm 270+50
Z axis travel mm 855
Rapid feed – X / Z axis mm 18 / 20
Feed motor – X / Z axis mm 4 / 4
JOG feed mm/min X/Z: 0~1260
Ball screw dia x pitch mm ø50×P8 (Z)
SPINDLE
Spindle speed rpm 2500
Spindle nose (chuck) inch A2-11 (12”)
Spindle motor power (cont./30min/25%) kW 22 / 26 / 35
(opt. 30 / 37 / 45)
Spindle bearing inside dia. mm Ø160
Spindle taper mm 1 / 20
Turret No. of tools (live) no. 12 servo
Tool shank size mm 32
Max. boring bar dia. mm Ø50 (BMT-75)
Exchange time (T-T) sec 1.36 – adjacent
1,8 – opposite
Milling speed rpm 3000
Milling motor kW 7
Tailstock Quill dia. mm 110
Quill stroke mm 100
Quill taper MT #5
Machine NC controller Fanuc 0i-TF (10.4”)
Coolant tank capacity L 250
Power requirement kVA 46
Machine dimension LxWxH mm 4930 x 2029 x 2253
(with chip conveyor) (5210 x 2029 x 2253)
Net weight kgs 9100
